Straight Segments

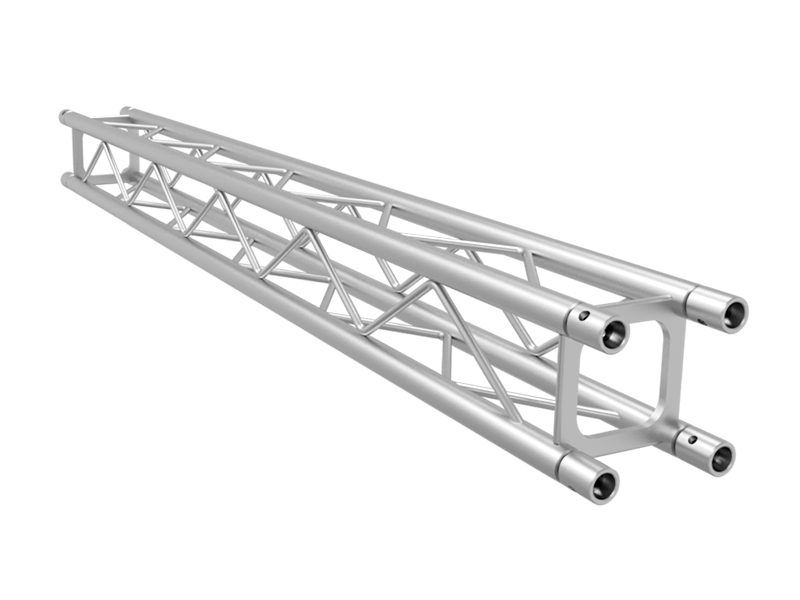

F14 Square Truss
Straight Segments

EXTERNAL DIMENSION: 100mm; TUBES: 20x2mm;

BRACES: 6mm; MATERIAL: EN-AW 6082 T6

• connecting hardware is included with each truss.

aa

Model
Length
Unit Weight
SQ-F14-0.5
1.64ft/0.5m
3lbs/1.36kg
SQ-F14-1.0
3.28ft/1m
5lbs/2.27kg
SQ-F14-1.5
4.92ft/1.5m
7lbs/3.18kg
SQ-F14-2.0
6.56ft/2m
9lbs/4.09kg
SQ-F14-2.5
8.20ft/2.5m
11lbs/4.99kg
SQ-F14-3.0
9.84ft/3m
13lbs/5.9kg
