Straight Segments

Straight Segments

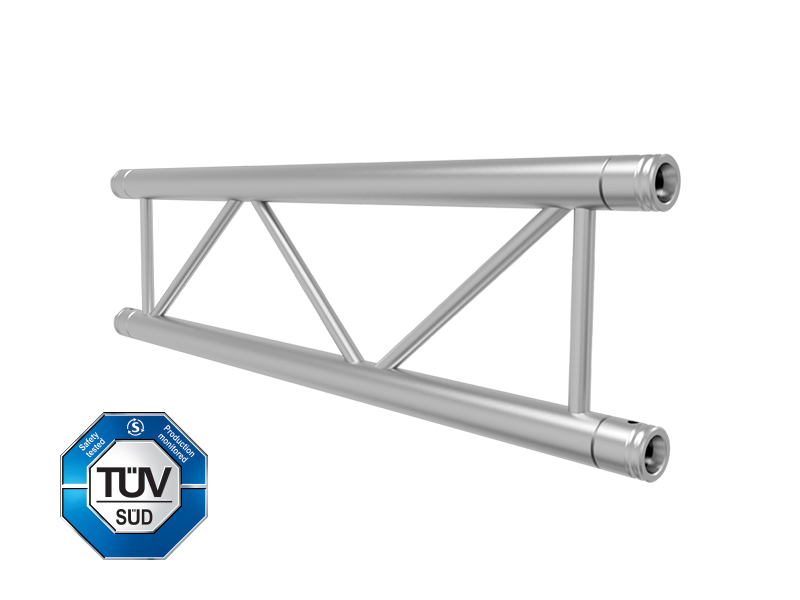

F32 Ladder Truss
Straight Segments

EXTERNAL DIMENSION: 290mm; TUBES: 50x2mm;

BRACES: 20x2mm; MATERIAL: EN-AW 6082 T6

• connecting hardware is included with each truss.

Model
Length
Unit Weight
IB-4048-29
0.95ft/0.29m
4lbs/1.82kg
IB-4048
1.64ft/0.5m
5lbs/2.27kg
IB-4049-75
2.46ft/0.75m
6lbs/2.72kg
IB-4049-875
2.87ft/0.875m
7lbs/3.18kg
IB-4049
3.28ft/1m
8lbs/3.63kg
IB-4050-1250
4.10ft/1.25m
10lbs/4.54kg
IB-4050
4.92ft/1.5m
12lbs/5.45kg
IB-4051
6.56ft/2.0m
14lbs/6.36kg
IB-4052
8.20ft/2.5m
16lbs/7.26kg
IB-4053
9.84ft/3.0m
18lbs/8.17kg
IB-4054
11.48ft/3.5m
21lbs/9.53kg
IB-4056
14.76ft/4.5m
28lbs/12.71kg
