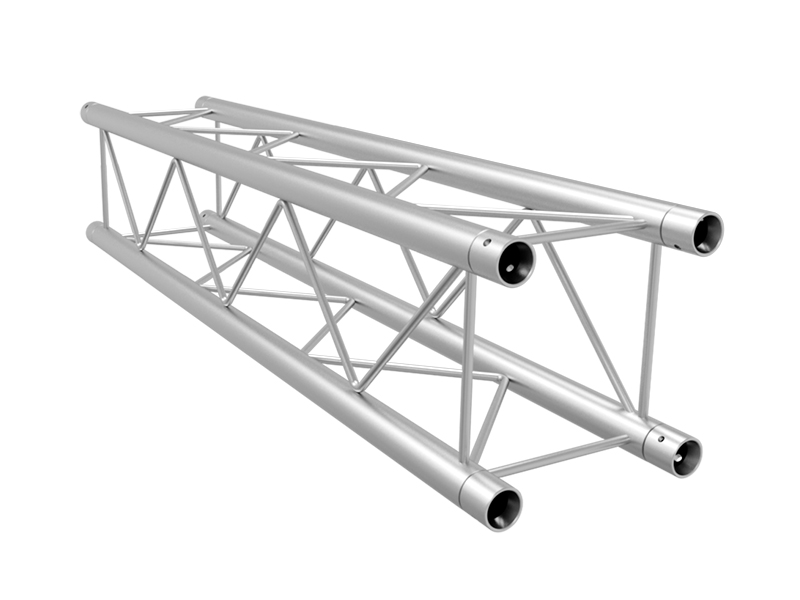

F24 Square Truss
Straight Segments

EXTERNAL DIMENSION: 220mm; TUBES: 35x2mm;

BRACES: 8mm; MATERIAL: EN-AW 6082 T6

• connecting hardware is included with each truss.

Model
Length
Unit Weight
SQ-F24-22
0.72ft/0.22m
4lbs/1.82kg
SQ-F24-50
1.64ft/0.5m
6lbs/2.72kg
SQ-F24-75
2.46ft/0.75m
7lbs/3.18kg
SQ-F24-875
2.87ft/0.875m
8lbs/3.63kg
SQ-F24-100
3.28ft/1m
9lbs/4.09kg
SQ-F24-150
4.92ft/1.5m
11lbs/4.99kg
SQ-F24-200
6.56ft/2m
14lbs/6.36kg
SQ-F24-215
7.05ft/2.15m
16lbs/7.26kg
SQ-F24-250
8.20ft/2.5m
17lbs/7.72kg
SQ-F24-275
9.02ft/2.75m
24lbs/10.9kg
SQ-F24-300
9.84/3m
26lbs/11.8kg
SQ-F24-350
11.48ft/3.5m
28lbs/12.71kg
