Straight Segments

Straight Segments

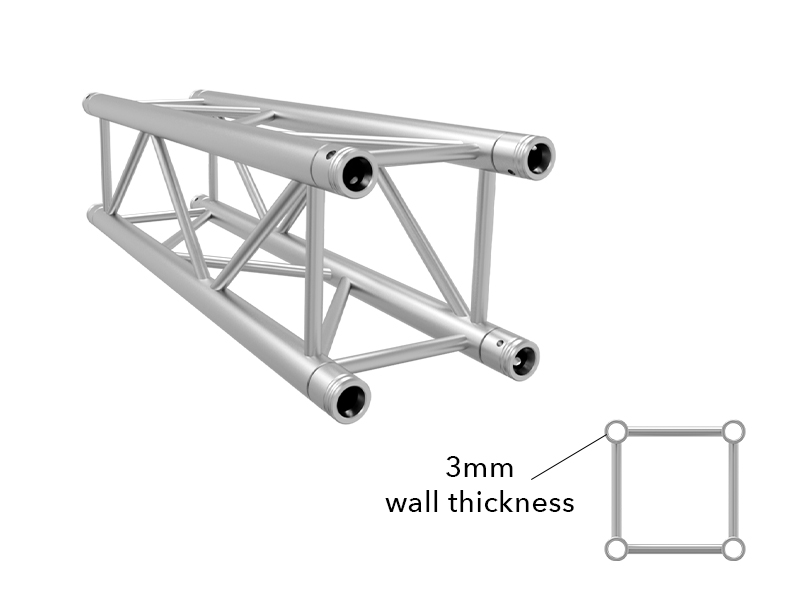

DT34P Square Truss
Straight Segments

EXTERNAL DIMENSION: 290mm; TUBES: 50x3mm;

BRACES: 20x2mm; MATERIAL: EN-AW 6082 T6

• connecting hardware is included with each truss.

Model
Height
Unit Weight
DT-4109P
1.64ft/0.5m
14lbs/6.36kg
SQ-29150P
0.49ft/150mm/5.9"
12lbs/5.45kg
SQ-29125P
0.41ft/125mm/4.92"
11lbs/4.99kg
SQ-29105P
0.34ft/105mm/4.1"
10lbs/4.54kg
SQ-29082P
0.26ft/82mm/3.28"
9lbs/4.09kg
SQ-2925P
0.82ft/250mm/9.84"
11.22lbs/5.09kg
SQ-2924P
0.78ft/240mm/9.44"
11.11lbs/5.04kg
SQ-2923P
0.75ft/230mm/9.05"
11lbs/4.99kg
SQ-2922P
0.72ft/220mm/8.66"
10.89lbs/4.94kg
SQ-2917P
0.55ft/170mm/6.7"
10lbs/4.54kg
SQ-2918P
0.59ft/180mm/7.08"
10.34lbs/4.69kg
SQ-2919P
0.62ft/190mm/7.48"
10.56lbs/4.79kg
SQ-2920P
0.65ft/200mm/7.87"
10.67lbs/4.84kg
SQ-2921P
0.69ft/210mm/8.2"
10.78lbs/4.89kg
DT-4110P
3.28ft/1m
20lbs/9.08kg
DT-4111P
4.92ft/1.5m
28lbs/12.71kg
DT-4112P
6.56ft/2m
34lbs/15.44kg
DT-4113P
8.20ft/2.5m
42lbs/19.07kg
DT-4114P
9.84ft/3m
50lbs/22.7kg
