Straight Segments

Straight Segments

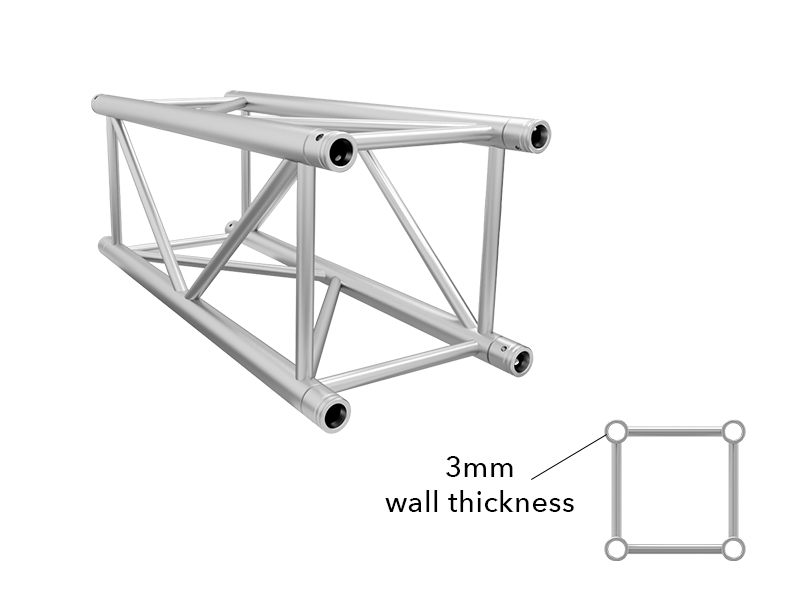

DT44P Square Truss
Straight Segments

EXTERNAL DIMENSION: 400mm; TUBES: 50x3mm;

BRACES: 20x3mm; MATERIAL: EN-AW 6082 T6

• connecting hardware is included with each truss.

Model
Length
Unit Weight
DT-4161P
1.64ft/0.5m
16lbs/7.26kg
DT-4162P
3.28ft/1m
26lbs/11.8kg
DT-4163P
4.92ft/1.5m
35lbs/15.89kg
DT-4164P
6.56ft/2m
44lbs/19.98kg
DT-4165P
8.20ft/2.5m
52lbs/23.61kg
DT-4166P
9.84ft/3m
62lbs/28.15kg
DT-4167P
11.48ft/3.5m
70lbs/31.78kg
